From Power-On to C: How xv6 Boots on RISC-V (Part 1)

After finishing Operating Systems: Three Easy Pieces (OSTEP) and experimenting with various Linux interfaces and system calls, I wanted to get my hands dirty with an actual operating system kernel codebase. OSTEP frequently points to xv6 for this, and to connect the theoretical concepts: virtual memory, page tables, traps, and scheduling, with real hardware and code, I have been diving into the xv6 kernel alongside MIT’s 6.S081 / 6.828 Operating System Engineering course. This is the start of a multi-part series where I document my notes, walk through the source code, and explain how things actually work under the hood.

When we type make qemu on our host machine—say, a MacBook running macOS on an Apple Silicon M-series chip—our physical CPU does not understand a single byte of RISC-V machine code. Our Mac runs on ARM64, while xv6 is compiled strictly as a 64-bit RISC-V (rv64gc) binary. Yet, within a fraction of a second, an interactive Unix shell prompt appears on our terminal. To understand how an operating system boots on bare metal, we have to start at the very beginning: before there is a stack, before virtual memory exists, before any C code can run, and even before the first instruction of the kernel executes. In this first post, we will trace the journey from the moment QEMU powers on its virtual hardware to the exact instruction that leaps into C code (start.c).

1. Emulating Hardware: How QEMU Runs RISC-V on macOS

Because our host hardware is ARM64, running qemu-system-riscv64 requires full-system emulation. QEMU does not execute guest RISC-V instructions directly on our physical CPU cores. Instead, it uses its Tiny Code Generator (TCG), an internal dynamic binary translation engine.

When QEMU runs:

1. CPU State in Host RAM: QEMU models the virtual RISC-V CPU in software. The 32 general-purpose registers (zero, ra, sp, gp, tp, t0-t6, s0-s11, a0-a7), the program counter (pc), and the Control and Status Registers (CSRs like mstatus, satp, mtvec) are simply member fields inside a C struct (CPURISCVState) allocated on our Mac’s heap.

2. Dynamic JIT Translation: As the virtual CPU reads guest 32-bit RISC-V instructions, TCG translates basic blocks of RISC-V instructions into an architecture-independent intermediate representation (IR), optimises them, and JIT-compiles them into native host instructions (ARM64 on Apple Silicon, x86_64 on Intel) cached in executable memory.

3. Motherboard Modelling (-machine virt): xv6 launches QEMU with the flag -machine virt. This tells QEMU to construct a standard virtual RISC-V development motherboard featuring:

   • Multiple CPU cores (called harts, short for hardware threads).
   • A Core Local Interruptor (CLINT) at 0x02000000 handling timer interrupts.
   • A Platform-Level Interrupt Controller (PLIC) at 0x0C000000 handling device interrupts.
   • Memory-Mapped I/O (MMIO) peripherals, such as a 16550A UART serial controller at 0x10000000 and VirtIO disk interfaces at 0x10001000.
   • Physical DRAM beginning at 0x80000000 (KERNBASE).

2. The Boot ROM & The Magic Address 0x80000000

When any computer powers on—whether a physical motherboard or a QEMU virtual machine—the CPU registers contain uninitialized garbage, and the program counter cannot point to arbitrary memory because RAM has not even been configured yet. Physical hardware solves this with a Boot ROM: a small, read-only memory chip wired directly to the CPU’s initial reset vector. When power is applied, hardware logic forces the program counter (pc) to point directly to this ROM.

In QEMU’s RISC-V virt board (defined in hw/riscv/virt.c and documented in xv6’s kernel/memlayout.h#L7-L14), the physical memory layout is wired as follows:

1
20x00001000 ──► QEMU Boot ROM (CPU reset vector lands here)
30x02000000 ──► CLINT (Timer registers)
40x0C000000 ──► PLIC (External device interrupts)
50x10000000 ──► UART0 (Serial console)
60x10001000 ──► VirtIO (Disk controller)
70x80000000 ──► RAM begins (DRAM / KERNBASE)

Notice the division at 0x80000000:

• Everything below 0x80000000 is reserved for Memory-Mapped I/O (MMIO) and internal chips. Reading or writing here talks directly to hardware controllers.
• Everything at and above 0x80000000 is physical RAM.

What Does QEMU’s Boot ROM Do?

When QEMU starts, every virtual hart begins executing at 0x00001000 inside QEMU’s hardcoded Boot ROM. The Boot ROM contains just a few instructions:

1. It queries the hardware to determine the hart ID (mhartid).
2. It sets up minimal device-tree pointers.
3. It performs a direct jump to address 0x80000000:

# Conceptual instructions executed inside QEMU Boot ROM
li t0, 0x80000000
jr t0

How Does the Kernel Binary Get to 0x80000000?

In xv6’s Makefile, QEMU is invoked with:

1
2qemu-system-riscv64 -machine virt -bios none -kernel kernel/kernel ...

The -kernel kernel/kernel argument is the bridge. Before QEMU starts executing instructions, its internal ELF loader inspects the compiled kernel/kernel binary on our host disk. It reads the ELF program headers and copies the binary’s executable code and data sections directly into the virtual machine’s RAM starting at physical address 0x80000000.

When the CPU resets to 0x00001000, it executes a few instructions in the Boot ROM and immediately jumps to 0x80000000. Because QEMU pre-loaded our kernel at 0x80000000, that jump lands squarely on the very first instruction of our operating system.

3. RISC-V Privilege Modes: Where Are We Right Now?

When the CPU arrives at 0x80000000, what can it do, and what rules constrain it? RISC-V defines three distinct hardware privilege modes:

Why not run everything in one mode?

If user programs could execute any CPU instruction, a rogue program could disable interrupts, overwrite page table registers, or read kernel memory. Hardware privilege levels enforce strict fault boundaries:

• U-mode code can only touch pages marked with the User bit (PTE_U) and cannot execute privileged instructions.
• S-mode is where the xv6 kernel spends almost all its life—managing page tables, interacting with drivers, and isolating user processes.

However, at CPU reset, the hardware starts in Machine Mode (M-mode). In M-mode:

• Paging is completely disabled (satp is 0).
• Every memory address is a raw physical address.
• We have unrestricted access to all Control and Status Registers (CSRs).

Our goal during early boot is to use M-mode just long enough to configure the bare-metal hardware and set up a C stack, and then immediately drop down to S-mode where the real operating system runs.

4. The Blueprint: How the Toolchain and kernel.ld Build the Kernel

We know QEMU jumps to 0x80000000. But how does our build system guarantee that the first instruction of our kernel is actually placed at byte 0x80000000? And how do assembly files (.S) and C files (.c) talk to each other to produce a single kernel binary?

To understand this, we need to look at how the GNU toolchain compiles and links xv6.

How C and Assembly Become Object Files

When we run make, the compiler doesn’t build the kernel in one giant step. Instead, it compiles each source file into an independent ELF object file (.o):

• C files (main.c, start.c, vm.c) are compiled via riscv64-unknown-elf-gcc into main.o, start.o, vm.o.
• Assembly files (entry.S, kernelvec.S, trampoline.S) are also assembled by gcc (which invokes the assembler gas) into entry.o, kernelvec.o, etc.

Every .o file contains:

1. Sections: Chunks of machine code (.text), initialized data (.data), and zeroed storage declarations (.bss).
2. A Symbol Table (.symtab): A dictionary of all functions and global variables defined or referenced in that file.
3. A Relocation Table (.rela): A list of placeholders where an instruction needs an address that wasn’t known at compile time (for example, when entry.S references stack0 defined in start.c).

At this stage, an object file has no idea where it will reside in physical RAM; its sections are simply offset from address 0x0.

Invoking the Linker in the Makefile

To combine these separate .o files into the final executable kernel/kernel, the xv6 Makefile#L126-L128 runs the GNU Linker (ld):

1$K/kernel: $(OBJS) $(OBJS_KCSAN) $K/kernel.ld $U/initcode
2	$(LD) $(LDFLAGS) -T $K/kernel.ld -o $K/kernel $(OBJS) $(OBJS_KCSAN)

Look closely at two details here:

1. The -T $K/kernel.ld flag: By default, ld uses an internal script tailored for regular user programs running on an OS like Linux. The -T flag tells the linker: “Discard your default layout. Use our custom linker script (kernel/kernel.ld) to place every section in memory.”
2. The Order of Objects in OBJS: In the Makefile, OBJS explicitly lists $K/entry.o as the very first object:

   1OBJS = \
   2  $K/entry.o \
   3  $K/kalloc.o \
   4  $K/string.o \
   5  $K/main.o \
   6  ...


   Because entry.o is listed first, its .text section is placed at the start of the final .text segment.

Deep Dive into kernel.ld

The Linker Script (kernel/kernel.ld) is the architectural blueprint for the final binary:

OUTPUT_ARCH( "riscv" )
ENTRY( _entry )

SECTIONS
{
  /*
   * ensure that entry.S / _entry is at 0x80000000,
   * where qemu's -kernel jumps.
   */
  . = 0x80000000;

  .text : {
    *(.text .text.*)
    . = ALIGN(0x1000);
    _trampoline = .;
    *(trampsec)
    . = ALIGN(0x1000);
    ASSERT(. - _trampoline == 0x1000, "error: trampoline larger than one page");
    PROVIDE(etext = .);
  }

  .rodata : {
    . = ALIGN(16);
    *(.srodata .srodata.*) /* do not need to distinguish this from .rodata */
    . = ALIGN(16);
    *(.rodata .rodata.*)
  }

  .data : {
    . = ALIGN(16);
    *(.sdata .sdata.*) /* do not need to distinguish this from .data */
    . = ALIGN(16);
    *(.data .data.*)
  }

  .bss : {
    . = ALIGN(16);
    *(.sbss .sbss.*) /* do not need to distinguish this from .bss */
    . = ALIGN(16);
    *(.bss .bss.*)
  }

  PROVIDE(end = .);
}

Let’s dissect this file line by line to see what it is doing:

1. How ENTRY(_entry) Connects to Assembly

• kernel/kernel.ld#L1-L2:

  OUTPUT_ARCH( "riscv" )
  ENTRY( _entry )


  In entry.S, we have the directive .global _entry. This marks _entry as an exported global symbol in entry.o’s symbol table. When the linker processes ENTRY(_entry), it searches through all input .o symbol tables, finds _entry in entry.o, and writes its final address into the ELF header’s entry point field (e_entry). Any tool reading this ELF binary (including QEMU’s -kernel loader or a debugger like GDB) knows that execution is intended to begin at _entry.

2. Setting the Location Counter to 0x80000000

• kernel/kernel.ld#L10:

  . = 0x80000000;


  In GNU linker scripts, . is the location counter. Setting . = 0x80000000 tells the linker: “Place the upcoming section starting at physical address 0x80000000.” Because entry.o is linked first, its .text section—beginning with _entry—lands at the very first byte (0x80000000). When QEMU jumps to 0x80000000, it lands directly on _entry.

3. The .text Section & The Trampoline

• kernel/kernel.ld#L12-L20:

  .text : {
    *(.text .text.*)
    . = ALIGN(0x1000);
    _trampoline = .;
    *(trampsec)
    . = ALIGN(0x1000);
    ASSERT(. - _trampoline == 0x1000, "error: trampoline larger than one page");
    PROVIDE(etext = .);
  }


  • *(.text .text.*) gathers executable code from all compiled files.
  • . = ALIGN(0x1000); aligns the location counter to a 4KB page boundary (4096 = 0x1000 bytes).
  • *(trampsec) inserts the assembly code from trampoline.S.
  • ASSERT(. - _trampoline == 0x1000, ...) guarantees that the trampoline code is exactly one page in size. If someone accidentally makes the trampoline larger than 4KB, the build fails immediately.
  • PROVIDE(etext = .); exports a global symbol etext recording the exact address where executable code ends. Later, in vm.c, the kernel uses etext to set page permissions: pages between 0x80000000 and etext are mapped with Read + Execute permissions (PTE_R | PTE_X), preventing code from being modified at runtime.

4. Data Sections and Alignment

• kernel/kernel.ld#L22-L42:
  • .rodata: Read-only data (such as string constants like "xv6 kernel is booting\n").
  • .data: Initialized global and static variables.
  • .bss: Uninitialized or zero-initialized global variables (e.g., process table arrays, lock structures).
  • Each section is aligned to 16 bytes (ALIGN(16)), matching standard 64-bit calling convention alignment requirements.

5. Exporting end

• kernel/kernel.ld#L44:

  PROVIDE(end = .);

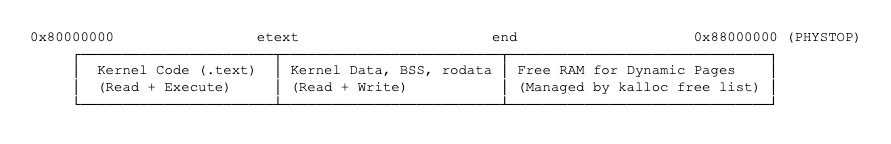

  This is a critical boundary marker. end marks the exact physical address where the kernel’s static binary terminates in RAM. Everything from end up to PHYSTOP (0x88000000 = 128MB) is free, unallocated physical memory. Later on, the physical memory allocator (kalloc.c) will use end as the starting point for its free-page linked list:

5. First Instructions: entry.S (Machine-Mode Assembly)

Now that kernel.ld has placed our code at 0x80000000, the virtual CPU jumps in.

The Problem: Why Can’t We Jump Directly to C?

When the CPU lands at 0x80000000, the CPU registers hold undefined values. Most importantly: The Stack Pointer register (sp) is uninitialized. In C, calling a function pushes the return address and local variables onto a stack. If we try to execute C code without a valid stack pointer, the very first function prologue (addi sp, sp, -32) will write to random memory, corrupting state or crashing the machine immediately. Therefore, the first task of an operating system must always be written in assembly: set up a valid stack pointer and jump to C.

Here is the complete source of kernel/entry.S:

 1	# qemu -kernel loads the kernel at 0x80000000
 2        # and causes each CPU to jump there.
 3        # kernel.ld causes the following code to
 4        # be placed at 0x80000000.
 5.section .text
 6.global _entry
 7_entry:
 8	# set up a stack for C.
 9        # stack0 is declared in start.c,
10        # with a 4096-byte stack per CPU.
11        # sp = stack0 + (hartid * 4096)
12        la sp, stack0
13        li a0, 1024*4
14	csrr a1, mhartid
15        addi a1, a1, 1
16        mul a0, a0, a1
17        add sp, sp, a0
18	# jump to start() in start.c
19        call start
20spin:
21        j spin

Let’s trace these instructions step-by-step.

Step 1: Where Does the Stack Memory Come From?

In kernel/start.c#L11, xv6 declares a dedicated global array:

1
2__attribute__ ((aligned (16))) char stack0[4096 * NCPU];

• NCPU is 8 (the maximum number of supported CPU cores).
• Each CPU core gets its own 4096-byte (4KB) stack slice.
• stack0 is allocated in the .bss section of the kernel binary.

How Does Assembly Access a Variable Declared in C?

Notice that stack0 is defined in a C file (start.c), yet entry.S directly loads its address via la sp, stack0. How does the toolchain bridge this?

1. C Symbol Export: In C, any variable declared globally outside of functions without the static keyword has external linkage (STB_GLOBAL). When gcc compiles start.c into start.o, it reserves space in the .bss section and records stack0 as a global symbol in start.o’s symbol table (.symtab). Because C does not mangle names (unlike C++), the symbol is stored simply as the ASCII string "stack0".
2. Assembly External Reference: When the assembler processes entry.S, it encounters la sp, stack0. Since stack0 is not defined anywhere in entry.S, the assembler cannot know its numerical address yet. It flags stack0 as an unresolved reference in entry.o’s symbol table and emits a relocation entry (specifically, a pair of instructions: auipc and addi).
3. Linker Resolution: When the linker (ld) executes, it scans both entry.o and start.o. It matches the unresolved reference in entry.o with the symbol definition in start.o, computes the final physical memory address of stack0 based on kernel.ld, and patches the immediate fields of the instructions in entry.o.

Step 2: The Multi-Core Stack Calculation

When QEMU powers on with multiple cores, every core executes _entry simultaneously.

If every CPU used the same stack memory, they would immediately overwrite each other’s return addresses and local variables—a catastrophic race condition. Every hart needs its own unique stack pointer.

Furthermore, in RISC-V, stacks grow downward from high memory to low memory. When pushing data, the CPU subtracts from sp. This means sp must be initialized pointing to the top (highest address) of each hart’s 4KB buffer.

Let’s look at the assembly arithmetic:

la sp, stack0       # 1. Load base address of stack0 array into sp
li a0, 1024*4       # 2. a0 = 4096 (size of one CPU stack)
csrr a1, mhartid    # 3. Read the hardware thread ID (0, 1, 2, ...) into a1
addi a1, a1, 1      # 4. a1 = hartid + 1
mul a0, a0, a1      # 5. a0 = (hartid + 1) * 4096
add sp, sp, a0      # 6. sp = stack0 + ((hartid + 1) * 4096)

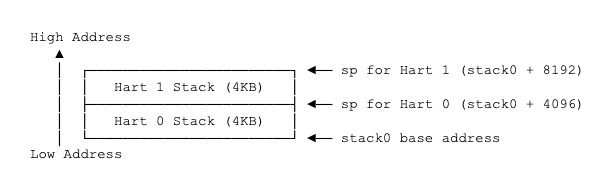

Let’s calculate this with concrete numbers. Assume stack0 begins at address 0x80010000:

• For Hart 0 (mhartid = 0): $$\text{multiplier} = 0 + 1 = 1$$ $$\text{offset} = 1 \times 4096 = 4096\ (\text{0x1000})$$ $$\text{sp}_0 = 0x80010000 + 0x1000 = \mathbf{0x80011000}$$ Hart 0’s stack occupies 0x80010000 to 0x80011000. As it pushes variables, it grows downward toward 0x80010000.

• For Hart 1 (mhartid = 1): $$\text{multiplier} = 1 + 1 = 2$$ $$\text{offset} = 2 \times 4096 = 8192\ (\text{0x2000})$$ $$\text{sp}_1 = 0x80010000 + 0x2000 = \mathbf{0x80012000}$$ Hart 1’s stack occupies 0x80011000 to 0x80012000.

Can CPU 1 Overflow into CPU 0’s Stack?

Looking at the memory diagram, an astute systems engineer might ask: What prevents Hart 1’s stack from growing so large that its sp crosses the 4KB boundary and starts overwriting Hart 0’s stack?

The honest answer: Nothing in hardware prevents this at this early stage!

Remember that we are executing in Machine Mode with paging turned off. Memory is just raw, flat DRAM. There are no virtual memory page tables and no unmapped guard pages between Hart 0’s buffer and Hart 1’s buffer. If Hart 1 pushed more than 4096 bytes of stack frames, its sp would decrement into Hart 0’s stack and corrupt it.

Why does xv6 get away with this? Because start() in start.c is intentionally tiny and carefully written:

• It allocates no large local variables or arrays.
• It performs zero recursive calls.
• It calls only timerinit() and executes a few CSR writes before transitioning to Supervisor mode. In practice, start() uses only a few dozen bytes of stack space, safely below the 4096-byte limit.

Later, when xv6 allocates per-process kernel stacks in Supervisor mode (proc_mapstacks() in proc.c), it explicitly surrounds each kernel stack with an unmapped 4KB guard page in kernel page table so that stack overflow causes an immediate hardware page fault panic. But at this early M-mode stage, stack safety is guaranteed purely by keeping start() lean.

6. From Assembly to C: The Leap to start.c

With a private stack pointer established for each core, the CPU can now safely execute compiled C functions:

• kernel/entry.S#L19-L21:

  call start


spin: j spin

Let's look at what these two lines are actually doing at the machine level:

### 1. `call start` (The Subroutine Call)
In RISC-V assembly, `call start` is a pseudo-instruction that expands into a pair of instructions:
```assembly
auipc ra, offset_high
jalr  ra, ra, offset_low

This performs two distinct actions:

1. It computes the address of the very next instruction (spin: j spin) and saves it into the Return Address register (ra).
2. It jumps to the first instruction of start() in kernel/start.c.

2. Why start() Never Returns

In a standard C program, when a function reaches its closing brace or a return statement, the compiler generates a ret instruction (which is jalr zero, 0(ra)). This jumps back to the address stored in ra, resuming execution right after the original call site.

However, start() is never supposed to return.

As we will see in the next post, start() configures Machine-mode registers, writes the address of main into the Machine Exception Program Counter (mepc), and terminates with:

1asm volatile("mret");

The mret (Machine Return) instruction is a hardware-level privilege transition. It drops the CPU from Machine Mode into Supervisor Mode and forces the program counter (pc) to jump directly to main. It completely ignores the return address in ra.

3. Why spin: j spin Is Essential

If start() never returns, why is spin: j spin placed immediately after call start?

Think of it as a safety trap for the CPU:

• What if someone introduces a bug in start.c—such as adding an accidental return; statement, or what if mret fails?
• The CPU would execute the standard C function epilogue, pop the stack, and branch back to ra—which points directly to line 20 of entry.S.

Without spin: j spin, the CPU’s program counter would fall through into whatever random bytes follow entry.S in memory. It would begin decoding arbitrary data or other kernel functions as instructions, causing erratic CPU behavior, silent memory corruption, or hard-to-debug crashes.

spin: j spin is an unconditional branch to itself (j spin jumps back to spin forever):

spin:
    j spin   # Infinite loop: pc = spin

If start() ever returns due to a bug, the CPU core is immediately trapped in this harmless infinite loop—effectively “parking” the faulty CPU core safely without affecting the rest of the system.

At this exact moment, bare-metal assembly has finished its job. Control has officially been handed over to C code in start.c.

Summary of the Boot Sequence So Far

Here is what we have established from power-on to the first C instruction:

What Comes Next?

We are now running C code in start.c, but we are still operating in Machine Mode with paging turned off.

In the next post, we will examine:

1. How start.c configures Machine-mode timer interrupts and delegates traps.
2. The clever mret trick used to drop privilege from Machine mode into Supervisor mode.
3. How main.c orchestrates all subsystems, boots multi-core harts, allocates the kernel page table (vm.c), and installs the kernel trap vector (trap.c).

References & Code Links

• Makefile#L126-L128 — Linking rule passing -T kernel/kernel.ld to the linker
• kernel/kernel.ld — Full linker script defining sections and memory boundaries
• kernel/entry.S — Initial assembly entry point and per-core stack pointer computation
• kernel/start.c#L11 — Declaration of stack0 buffer
• kernel/memlayout.h#L7-L14 — QEMU virt board physical memory map
